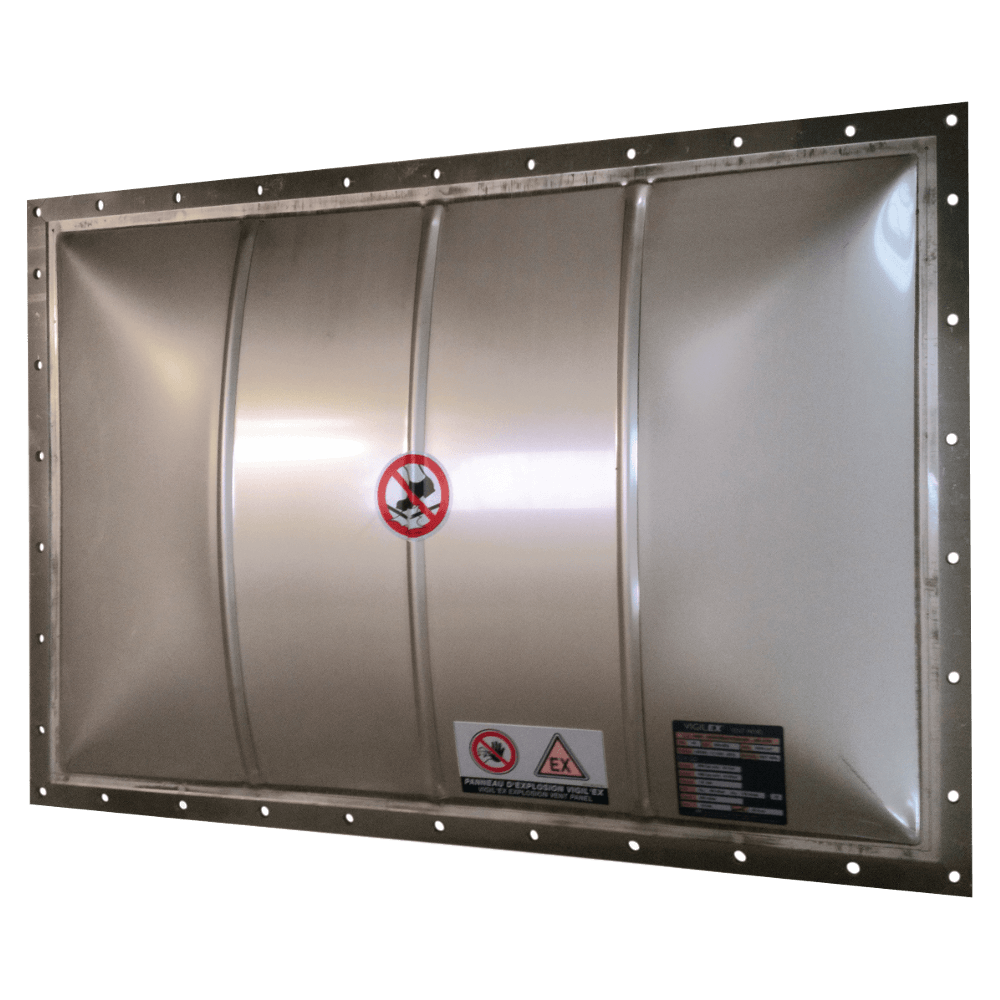

EXPLOSION VENTING PANEL VIGILEX VD-HV

The VIGILEX VD-HV is a strong domed panel, designed for use in applications where the operating pressure approaches the burst pressure, or where high vacuum pressure may exist. In the need for applications where the explosion vent is exposed to pulsating duty such as reverse jet cleaning systems on dust collectors with high vacuum. With a large flange and gasket included, the one layer domed panel VIGILEX VD-HV meets all your safety issue to protect equipment and facilities. The standard burst pressure is 0.1 bar (max.0.5 bar) at 22 °C (72 °F).

PanelDesignPstat@22°CEfficiency ratioMax vacuumKst Max
VDdomed panel made of sst 304L + integrated flange0,1 do 0,5 bar (±15%)80 – 100%200 mbar500 bar.m/s

STANDARD CHARACTERISTICS

  • panel made of single flat sst 304 L
  • black EPDM FDA gasket (-40°+80°C)
  • integrated stainless steel flange

OPTIONS

  • stainless steel 316L
  • white silicone FDA gasket and 1935/2004 CE (-60°+200°C)
  • high temperature graphite gasket (-200°+500°C)
  • integrated stainless steel 316L flange

CERTIFICATES

  • Ex II GD
  • EN 14 491
  • EN 14 994
  • EN 14 797
  • EN 1127.1
  • EU certificate: INERIS 15ATEX0001X
  • Production quality assurance: INERIS 08ATEXQ406

DIMENSIONS AND SHAPES

Panels VIGILEX VD-HV are available in the following shapes:

  • rectangular
  • square
  • round
External dimensions (mm)Internal dimensions (mm)Surface (cm2)
170 x 470250 x 550785
220 x 420300 x 500910
229 x 229310 x 310515
229 x 305310 x 386690
270 x 458350 x 5381220
300 x 500380 x 5801480
305 x 610386 x 6901845
350 x 650430 x 7302255
410 x 410480 x 4801660
490 x 490570 x 5702380
490 x 590570 x 6702865
586 x 920666 x10005360
610 x 610690 x 6903695
653 x 653735 x 7354260
915 x 1118996 x 119810200
920 x 9201000 x 10008425
920 x 13801000 x 146012420
980 x 9801080 x 10809600
1020 x 10201100 x 110010360
