Grinding tables
Wood processing workshops face the problem of dust created during grinding or cutting. Equipping your workshop with grinding tables of appropriate extraction efficiency improves your working conditions and ensures safety.
Light, airborne dust not only makes the product surface finish difficult, which negatively affects the quality of the final product, but, above all, harms workers exposed to its inhallation. Our FS grinding tables are an ideal solution for both smaller and larger production plants they provide you with better ergonomics
Many applications and variety of configurations
Basic parameters of the FS grinding tables:
- high filtration efficiency
- its own extraction system with inbulit fan
- ergonomic and light structure made of galvanised steel
- easy assembly
- thermally secured switch and safety button
- modular structure enables extension (single module 637 x 1104 mm)
- regulated height (750 – 1000 mm)
- inbuilt noise silencer
- mobility
- attractive price
Additional options:
- side tool shelf
- electric socket and compressed air connection
- additional shelf of the working area – enables operations at the edge of the table with simultaneous extraction of the produced dust
- connection and integration into an existing central extraction system
We produce tables for individual needs and wishes. Our standard offer includes the following table models:
Basic parameters of the FS grinding tables
| Table model | Efficiency (m3/h) | Modules | Module width (mm) | Basic Module Length L (mm) | Enlarged Module Length XL (mm) | Side Tool Shelf length RS (mm) | Total table length (mm) | |
| 1. | FS/0,5 | 650 | L | 1104 | 637 | — | —- | 637 |
| 2. | FS/0,5/RS | 650 | L + RS | 1104 | 637 | — | 300 | 937 |
| 3. | FS/1 | 1300 | XL | 1104 | — | 1234 | — | 1234 |
| 4. | FS/1/RS | 1300 | XL + RS | 1104 | — | 1234 | 300 | 1534 |
| 5. | FS/1,5 | 1950 | XL + L | 1104 | 637 | 1234 | — | 1871 |
| 6. | FS/1,5/RS | 1950 | XL+L+RS | 1104 | 637 | 1234 | 300 | 2171 |
| 7. | FS/2 | 2600 | 2XL | 1104 | — | 1234 | — | 2468 |
| 8. | FS/2/RS | 2600 | 2XL+RS | 1104 | — | 1234 | 300 | 2768 |
| 9. | FS/2,5 | 3250 | 2XL+ L | 1104 | 637 | 1234 | — | 3105 |
| 10. | FS/2,5/RS | 3250 | 2XL+L +RS | 1104 | 637 | 1234 | 300 | 3405 |
| 11. | FS/3 | 3900 | 3XL | 1104 | — | 1234 | — | 3702 |
| 12. | FS/3/RS | 3900 | 3XL+RS | 1104 | 637 | 1234 | 300 | 4002 |

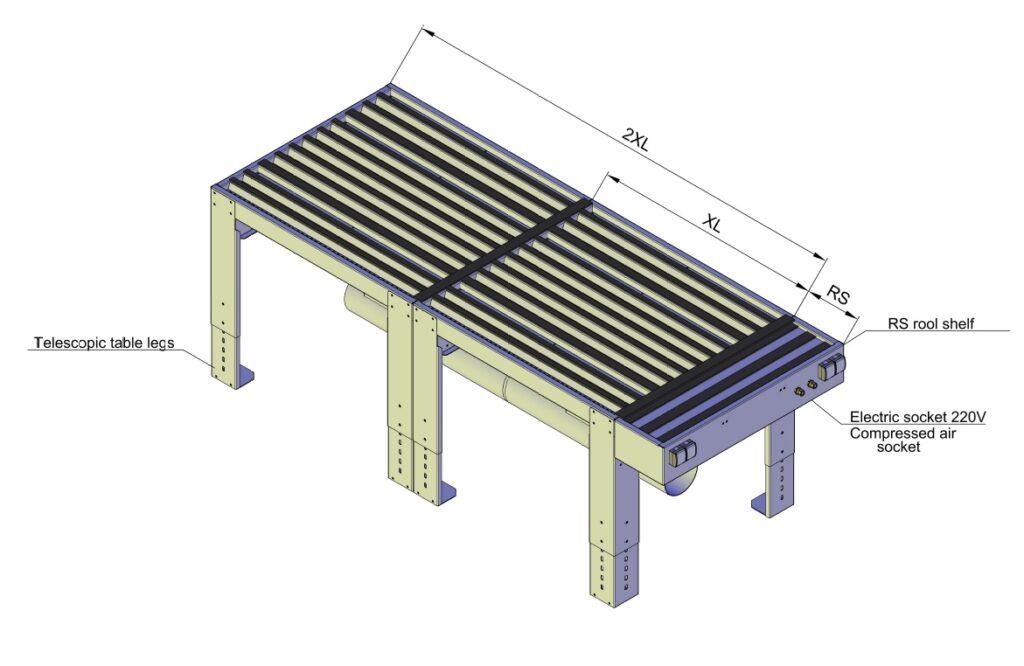

Grinding table model 2XL RS
